High-Visibility Warning Tape for Electrical Safety Zones

Retractable Safety Barrier Reel (5/8 cm, up to 100 m)

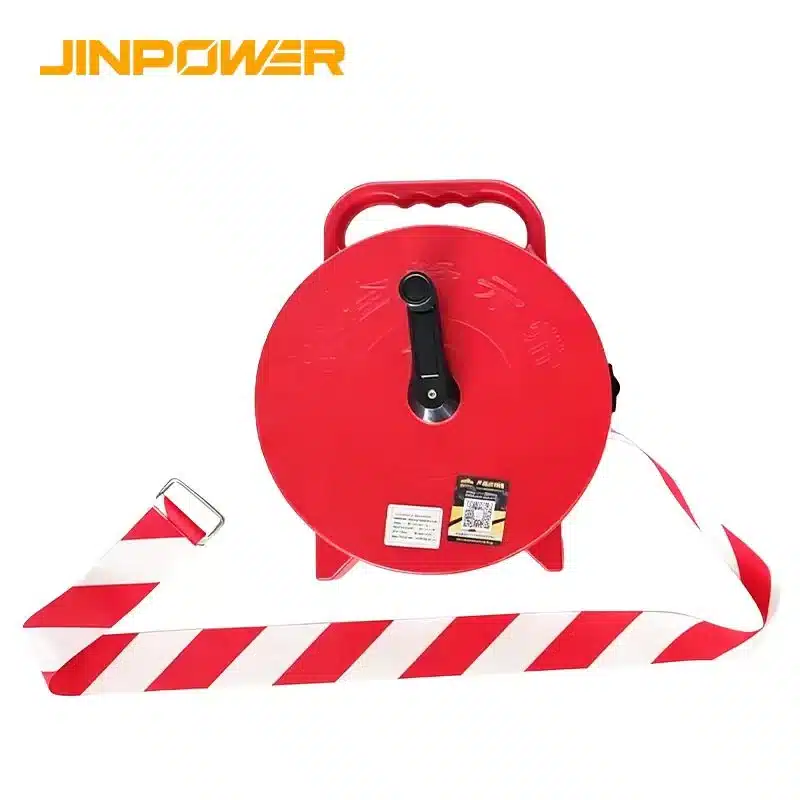

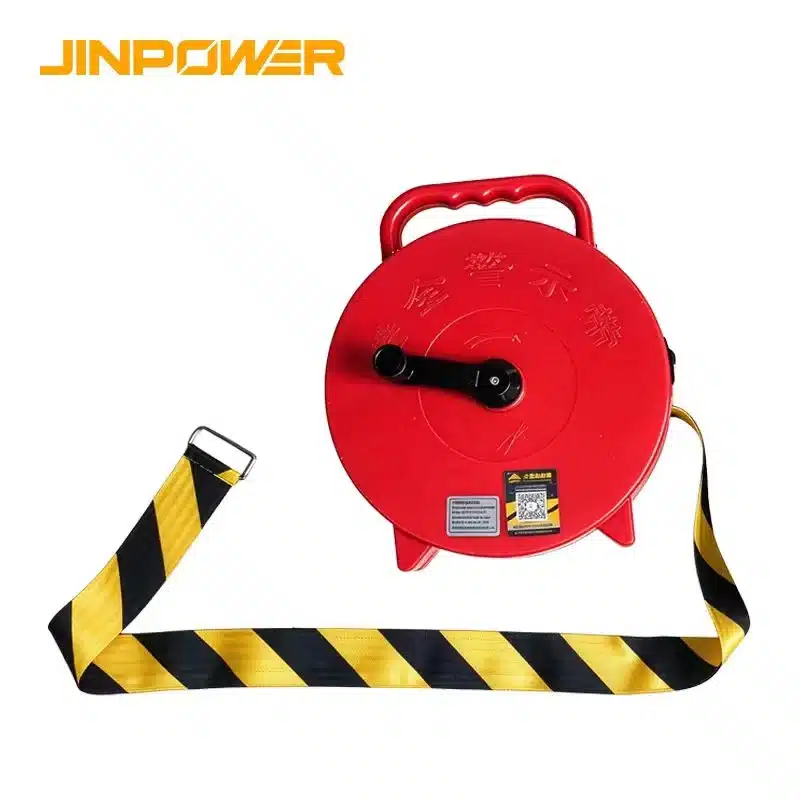

Define space fast. Keep it visible. Make it auditable. The JINPOWER JN-JSD retractable safety barrier reel packages high-visibility nylon tape in a rugged ABS housing with a lock-at-length switch and folding rewind handle. Crews mark off work zones, aisles, and no-go areas in seconds—then rewind cleanly with one hand. A metal leader takes the pull force at the anchor point, so the tape stays intact after repeated deployments.

Tape options that fit your site. Widths 5 cm / 8 cm; lengths 20 / 30 / 50 / 80 m / 100 m (80/100 m for 5 cm). Nylon is thick and abrasion-resistant for repeated use around edges and posts. Visibility is configurable: color, text, and reflective striping are all customizable (no extra charge for standard print).

Built for field abuse. The shell uses virgin ABS, not recycled plastic—impact-resistant and tough against scuffs. The metal pull tab (leader) is the load path when you tension the line. The lock switch holds the exact span you set; the folding handle reels the tape back quickly without tangles.

Docs that pass review. Each batch ships with a Certificate of Conformity and test report; statements can align to the usage scenarios in GB/T 36291.1-2018 for substation and facility safety provisioning.

Technical Specs — JN-JSD Retractable Safety Barrier Reel

Compact specs you can scan and approve. Everything you need to brief procurement and HSE—no fluff.

Notes that matter

• Choose 5 cm when you need 80/100 m long runs without joins; 8 cm when you want max visual width at short/medium spans.
• The metal leader protects the tape at posts and corners; the lock switch holds the exact span you set, then the folding handle reels it cleanly.
• Printing and reflective options keep your warnings consistent across sites—use the same artwork for all depots to simplify audits.

Key Features — Fast, Durable, Customizable

Lock-at-Length control
Set the span you need and lock it instantly. The barrier reel holds tension without slip, so aisles and work zones stay defined.

Quick rewind handle
Fold-out handle reels tape back fast and clean. No tangles, no wasted time between moves.

Metal leader (load path)
The metal pull tab is the force-bearing end. It protects the nylon tape at anchors and corners, extending service life.

High-visibility nylon tape
Thick, abrasion-resistant nylon in 5 cm or 8 cm widths. Custom colors, text, and reflective striping keep warnings clear from distance.

Lengths that fit real sites
Choose 20 / 30 / 50 / 80 m / 100 m (80/100 m available on 5 cm). One reel covers most cordons without splicing.

Rugged ABS housing
Virgin ABS shell resists impact and scuffs. Built for repeat deployment on concrete, scaffolds, and yard posts.

One-hand operation
Lock, adjust, and rewind with a single hand—useful when the other hand is on a tool or post.

Docs for acceptance
Each batch includes a Certificate of Conformity and test report; statements can align to GB/T 36291.1-2018 usage scenarios for facility safety provisioning.

Usage note
This retractable safety barrier tape reel is for visual warning and area demarcation only; it is not load bearing or fall-arrest equipment.

Applications — Where JN-JSD Fits

Utility & substations. Rapidly cordon work bays, live-front boundaries, and switching aisles. Lock the span, apply reflective text where visibility matters, and rewind between steps.

Contractors & maintenance. Mark hot-work zones, cable pulls, and temporary access routes on scaffolds or floors. The metal leader takes the pull at posts and corners.

Rail & transit hubs. Create pop-up queuing and “no-go” perimeters on platforms or concourses; 5 cm tape supports long runs (80/100 m), 8 cm maximizes visual width for short spans.

Warehousing & logistics. Define forklift lanes, cross-docks, and spill response areas. One-hand lock/rewind speeds moves as work fronts shift.

Process plants & events. Guide crowds or isolate equipment during inspections; nylon tape resists abrasion against barriers and stanchions.

Use boundary (important). Visual warning and area demarcation only—not load-bearing or fall-arrest. For very long runs, stage posts first and consider two-person handling.

Compliance & Documents — Simple, File-Ready

Keep approvals quick and clean. The JN-JSD retractable safety barrier reel ships with a concise documentation pack and clear labeling so procurement and HSE can file without back-and-forth.

What we supply (per batch)

• Certificate of Conformity (CoC) tied to your PO/model.
• Test report (agreed items)—e.g., tape appearance/abrasion check, mechanism/rewind function check, labeling/print legibility.
• Artwork proof archive for custom color/text/reflective prints.

How we reference standards

• On request, we provide a usage statement aligned to the facility-safety provisioning scenarios in GB/T 36291.1-2018 (note: this is a use-case guideline, not a dedicated product standard).

Traceability & labels

• Lot/date codes on the reel and carton; optional QR/serials.
• Clear safety label: “Visual warning/area demarcation only—NOT load-bearing or fall-arrest.”

Acceptance quick-check (on receipt)

• Lock holds at length; rewind runs smoothly with the folding handle.
• Nylon tape has no cuts or frays; metal leader fixed securely.
• Custom print and reflective striping match the approved artwork.
• File CoC + test report with the site record.

Result: a barrier reel that is easy to approve, easy to trace, and ready for use in audited environments.

Customization — Configure for Your Sites

Tape width & length. Choose 5 cm or 8 cm; lengths 20 / 30 / 50 / 80 / 100 m (80/100 m on 5 cm). Standardize by site so crews always grab the right reel.

Print & visibility. Free customization for color, text, icons, and reflective striping. Keep wording consistent across depots to pass audits and speed recognition.

Hardware & housing. Metal leader is standard for a strong anchor pull. Housing color and labeling can match your safety scheme; shell is virgin ABS for impact resistance.

Identification. Add QR/serial labels for asset systems; carton and reel carry lot/date codes by default.

Accessories. Optional hand-carry box for fast deployment and tidy storage in vehicles or tool rooms.

Comparison — Pick the Right Format for the Job

When to choose the JN-JSD reel vs. other options.

One-line guidance: if your team needs to redefine space multiple times a shift, pick the retractable barrier reel; if you layout very long, one-off perimeters, a dispenser box is economical; for permanent lanes, use fixed posts/wall mounts.

Usage Notes — Do This, Avoid That

Do

• Lock before tensioning; unlock to adjust; use the folding handle for clean rewind.
• For 80/100 m runs (5 cm), stage posts first; long spans may need two-person handling.
• Route around smooth corners; use guards on sharp edges to protect the nylon tape.
• Wipe dirt/water before rewind; store dry in tool rooms or vehicle cases.
• Inspect the metal leader and first meter of tape for abrasion; replace if compromised.

Don’t

• Don’t use as load-bearing or fall-arrest gear—visual warning only.
• Don’t drag the housing on concrete; carry by the handle.
• Don’t over-torque the lock switch; click to set, don’t force.

Tip: standardize color/text/reflective artwork across depots for consistent visibility and faster audits of safety cordons.

FAQ

Q1. What widths and lengths are available?
A. 5 cm / 8 cm widths; 20 / 30 / 50 / 80 / 100 m lengths (80/100 m on 5 cm).

Q2. Can we customize color, text, and reflective?
A. Yes. Custom color/text/icons and reflective striping supported; standard prints at no extra charge.

Q3. What’s included in documentation?
A. Certificate of Conformity + test report per batch; usage statement can align to GB/T 36291.1-2018 scenarios.

Q4. Is the JN-JSD safety barrier reel load-rated?
A. No. It’s a retractable safety barrier warning tape reel for visual demarcation only.

Q5. What materials are used?
A. Nylon tape (abrasion-resistant), virgin ABS housing, metal leader, folding rewind handle, lock-at-length switch.

Q6. Lead time and MOQ?
A. Typical lead time 20–30 days. MOQ depends on print customization; standard color/text often has low MOQ.

Q7. Can we get spares?
A. Yes—replacement leaders, first-meter tape sections, and carry boxes available.

Move from Spec to Field

Ready to standardize barrier control across sites? Send: tape width/length, color/text/reflective spec, housing color, quantity, and whether you need the hand-carry box.
